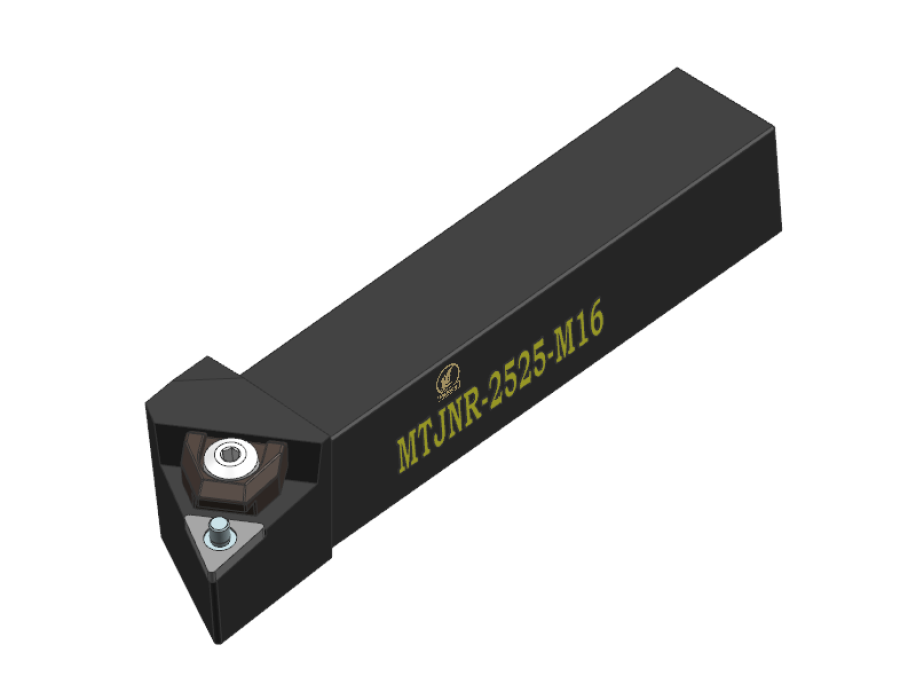

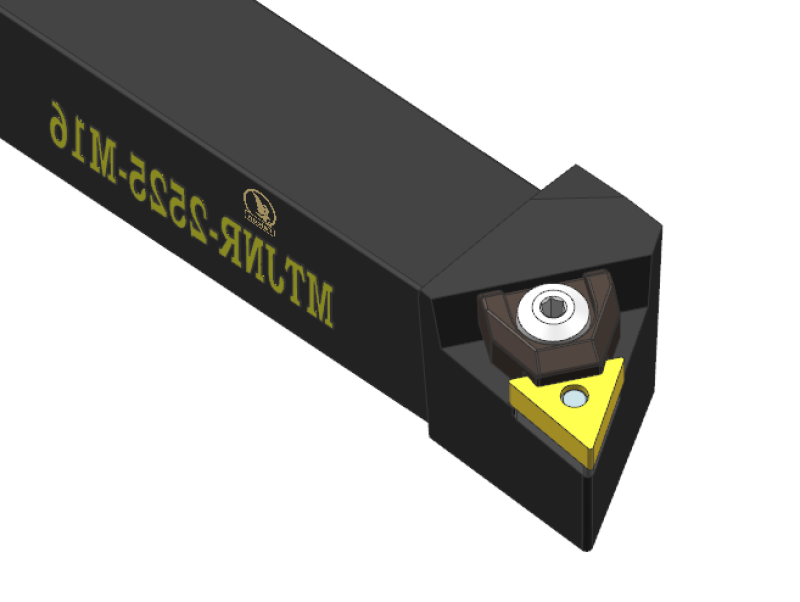

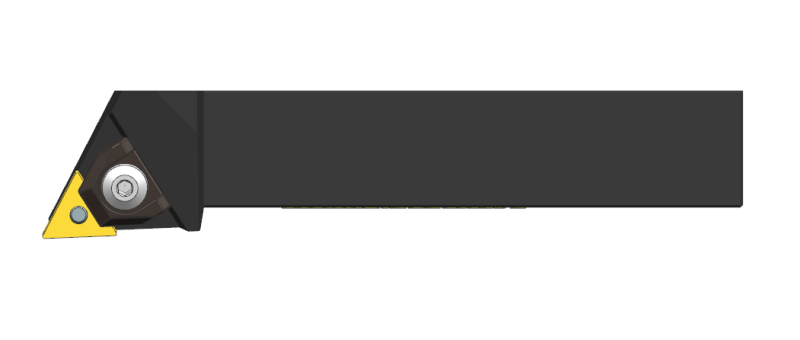

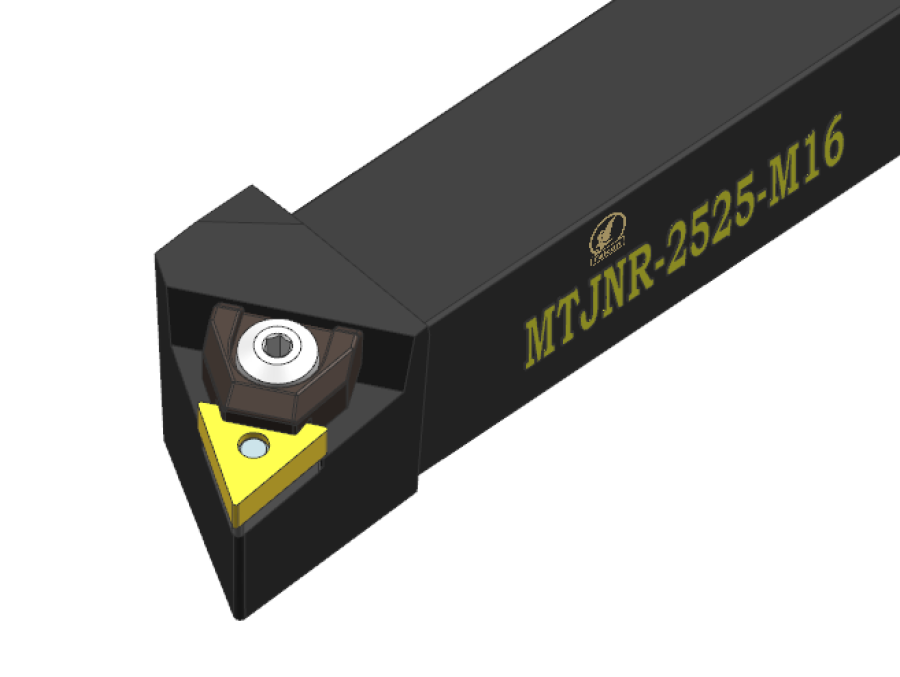

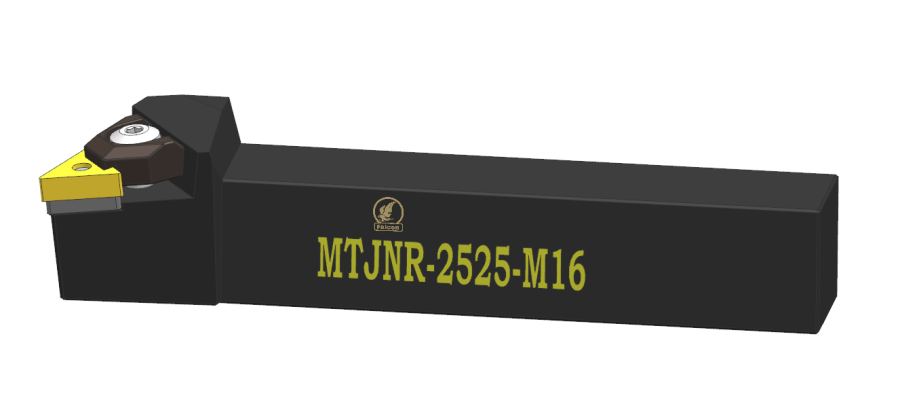

Name: MTJNR/L-2525-M16
Brand: FALCON

Key Specifications

Insert Compatibility: Designed for TNMG 1604... style negative, triangular inserts (e.g., TNMG 160408). The "M16" in the code corresponds to the insert size (specifically the 16mm effective cutting edge length/inscribed circle of the compatible insert).
Shank Dimensions:
- Shank Height (H): 25 mm
- Shank Width (B): 25 mm
- Overall/Functional Length (OAL/LF): 150 mm
Approach Angle: 93° side cutting angle.
Cutting Direction: The code is available in both right-hand ("R") and left-hand ("L") cutting directions. The specific letter in the code indicates the direction (e.g., MTJNR 2525 M16 is right-hand).
Clamping System: It uses a robust multi-lock (M-system) clamp to secure the insert, which is suitable for demanding applications.
