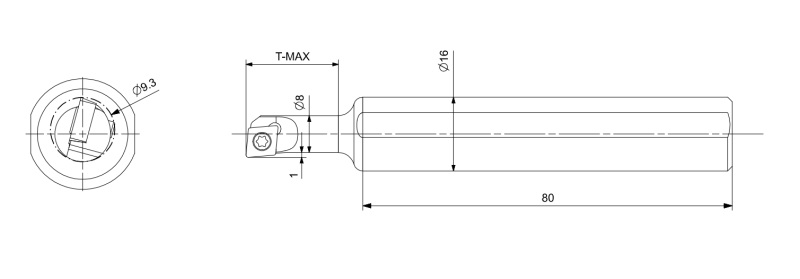

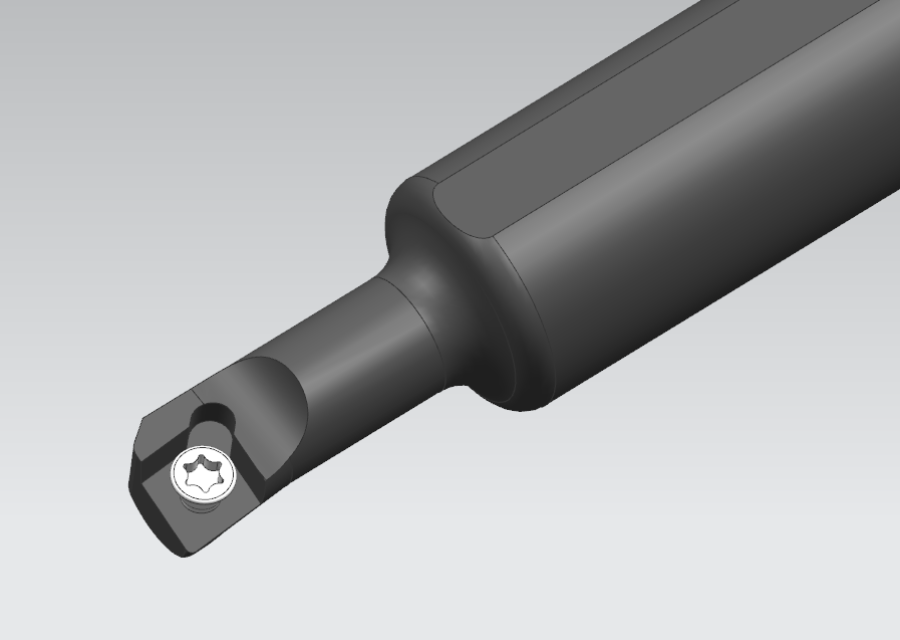

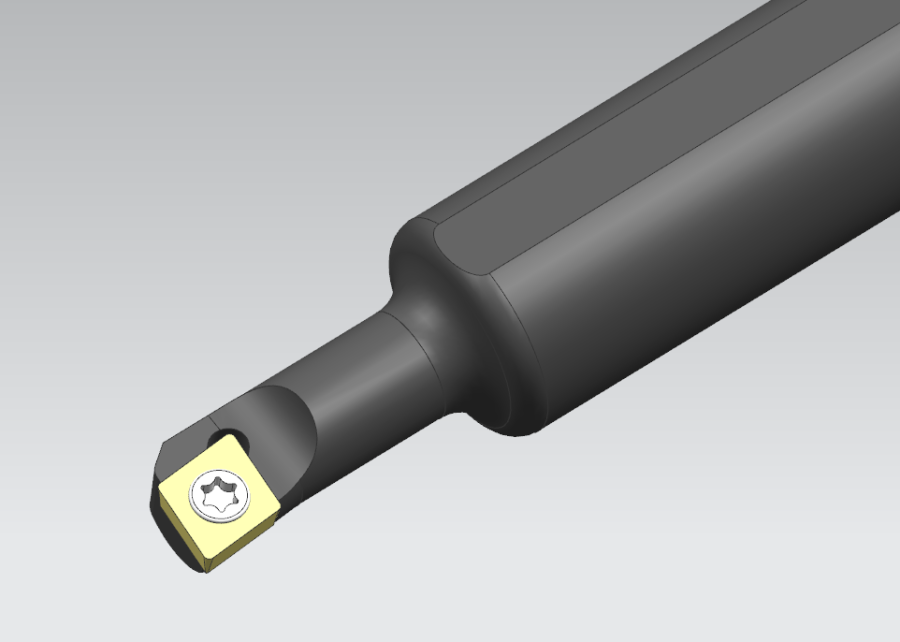

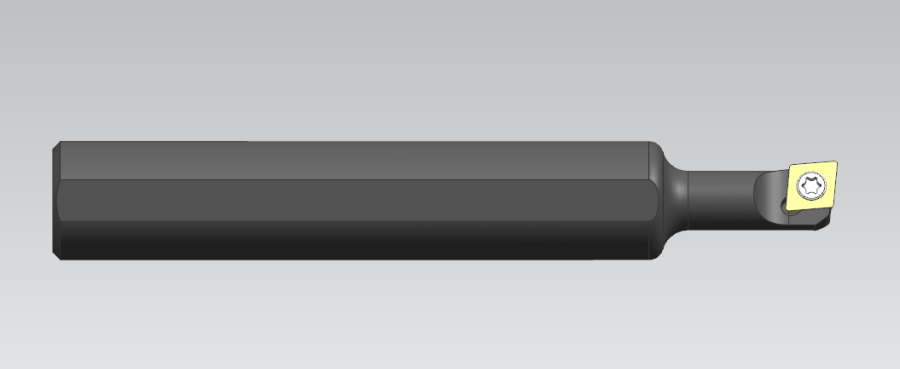

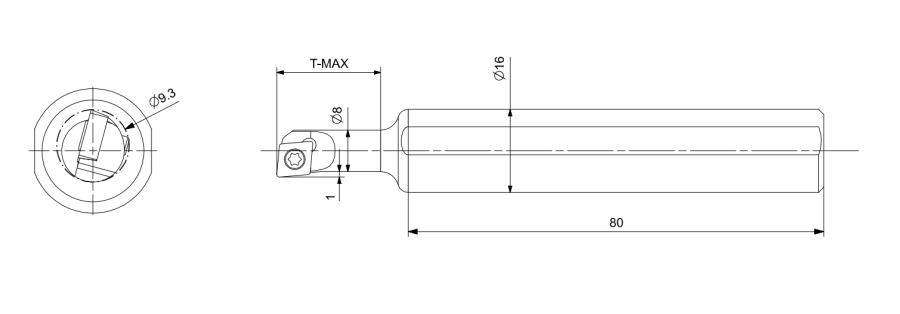

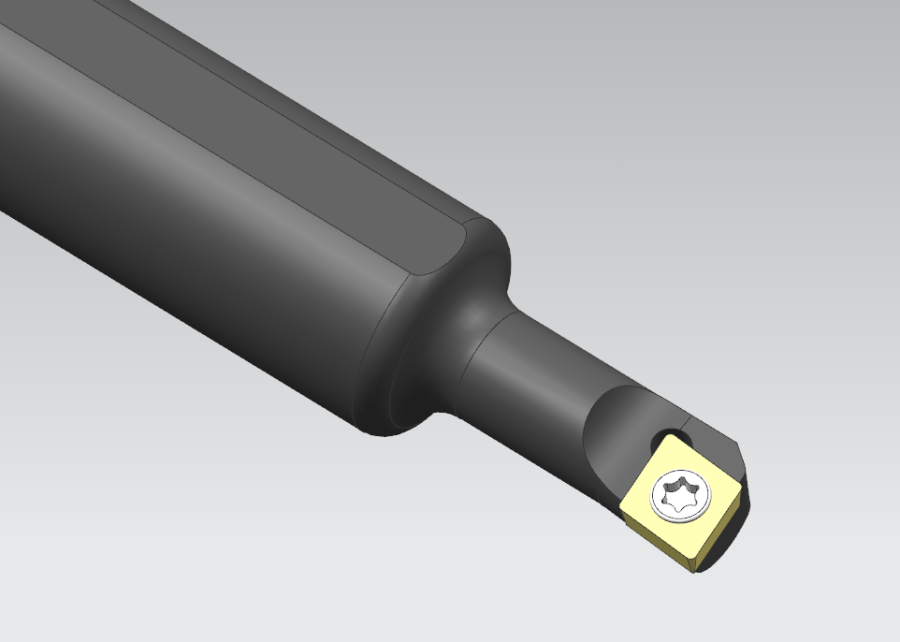

Name: S16/8-SCLCR/L-06-B10-T20
Brand: FALCON

**Tool Specifications**
Code	Meaning	Specification
S	Shank Style	Straight round steel shank
16/8	Shank Diameter & Relief	A stepped shank with a main diameter of 16 mm, reduced to 8 mm near the head for clearance in smaller bores.
-	Length	(This position is for length code, but often omitted in short-form vendor codes).
S	Clamping Method	Screw clamping system
C	Insert Shape	80-degree rhombic (diamond) insert shape
L	Insert Clearance	Positive, 7-degree clearance angle
C	Tool Style/Angle	95-degree cutting edge angle (approach angle)
R/L	Hand of Tool	R for Right-hand cutting direction, L for Left-hand cutting direction
06	Insert Size/Code	Designed for CCMT 0602... inserts (6mm inscribed circle size).
B10	Minimum Bore	Suitable for a minimum bore diameter of 10 mm.
T20	Max Working Length	Refers to a specific Max Working Length, likely indicating a T20 is to maximum working Length 20mm.
