S16Q-SVQBR/L-11-B22

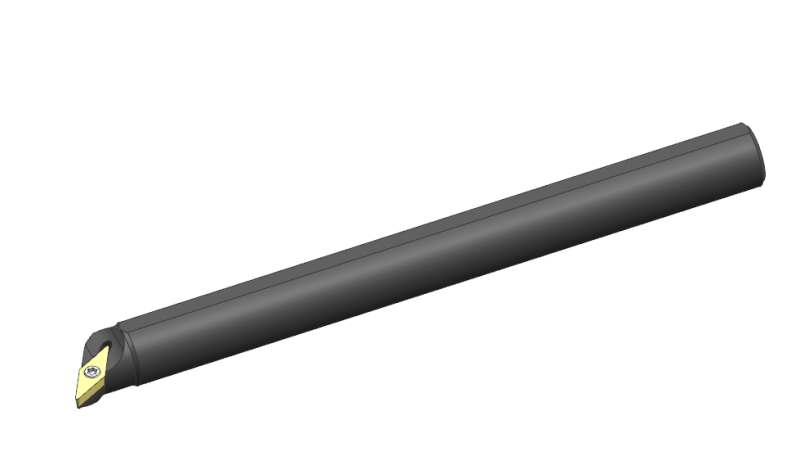

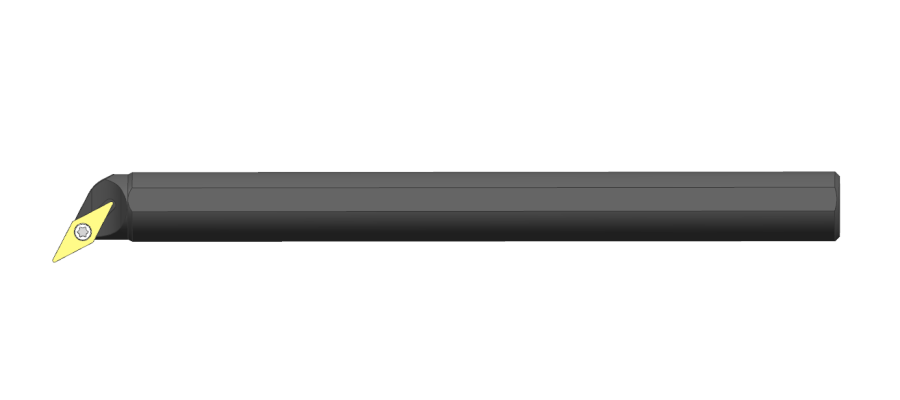

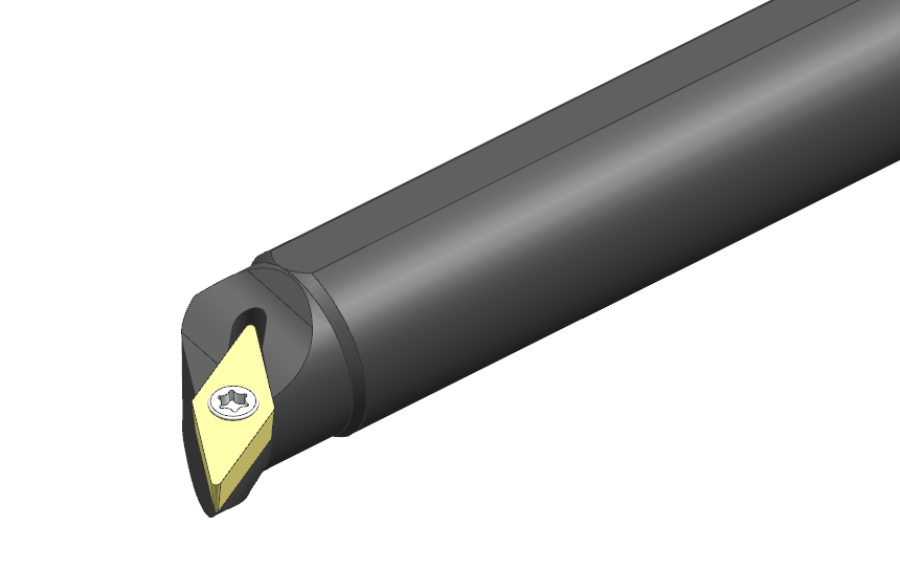

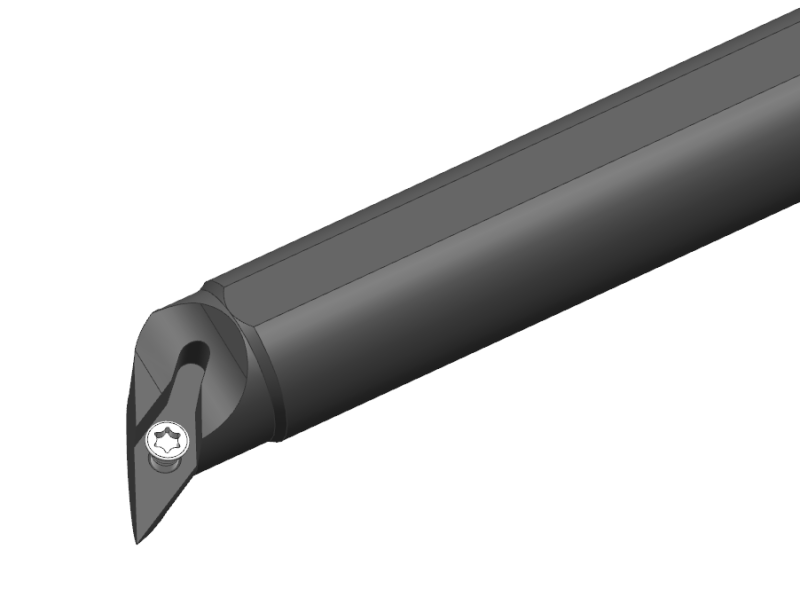

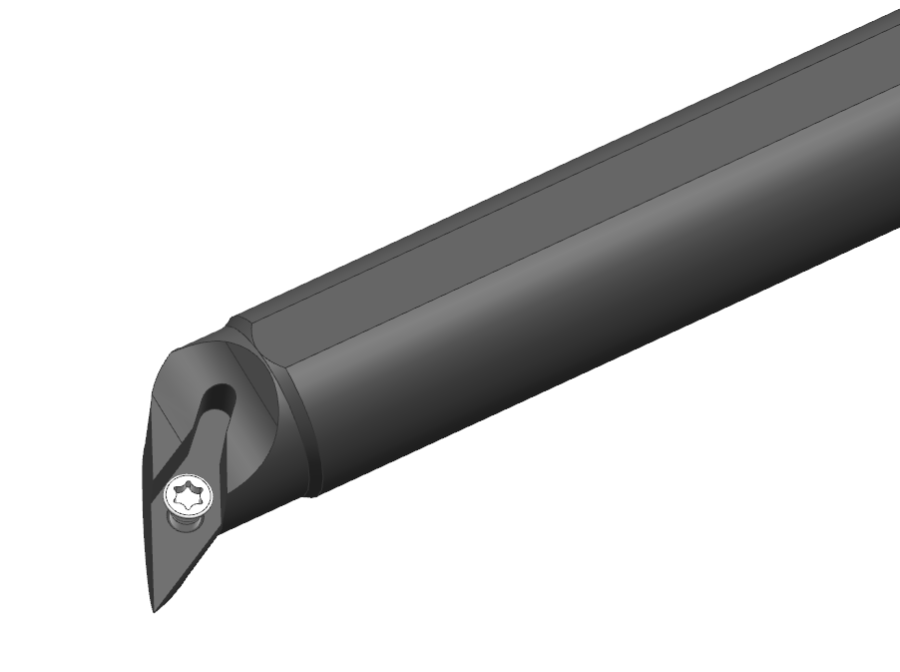

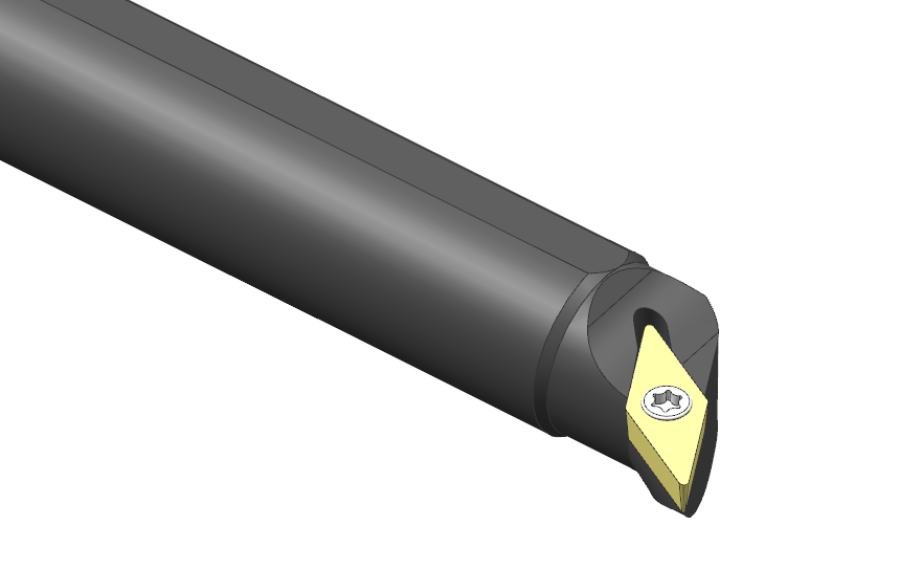

The Tool "S16Q-SVQBR/L-11-B22" refers to an internal turning boring bar tool holder used in CNC machining that uses VBMT 1103-- carbide inserts.

₹ 1,000 ^{₹ 1,800}

( No Reviews )

DIRECTION

RH

LH

Rajesh CN

SVQB VBMT BORING TOOL

COD

Cancelable till received

No Returnable

Cash on Delivery is eligible for orders above ₹0 and below ₹0

DIRECTION :	RH, LH
Made In :	India
Brand :	FALCON

Tool Holder Specifications

The designation follows a standard ISO coding system for tool holders, detailing its primary characteristics:

S (Shank Material): The boring bar is made of steel.

16 (Shank Diameter): The diameter of the round shank is 16mm.

Q (Overall Length): The overall length of the tool is 180mm.

S (Clamping Method): Uses a screw lock clamping system for the insert.

V (Insert Shape): Designed for 35° diamond (rhombic) inserts.

Q (Holder Style): Features a convex radius cutting, offset shank design.

B (Insert Clearance Angle): For inserts with a 5° clearance angle.

R/L (Hand of Cut): Available in both Right-hand (R) and Left-hand (L) cutting styles.

11 (Insert Size): Compatible with inserts of size 11 (specifically, VBMT1103-- inserts).
