S16Q-SVUBR/L-11-B22

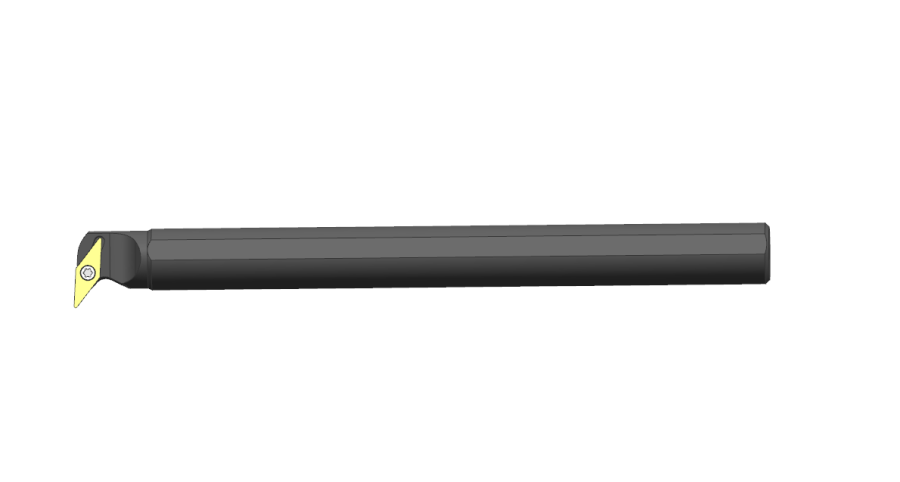

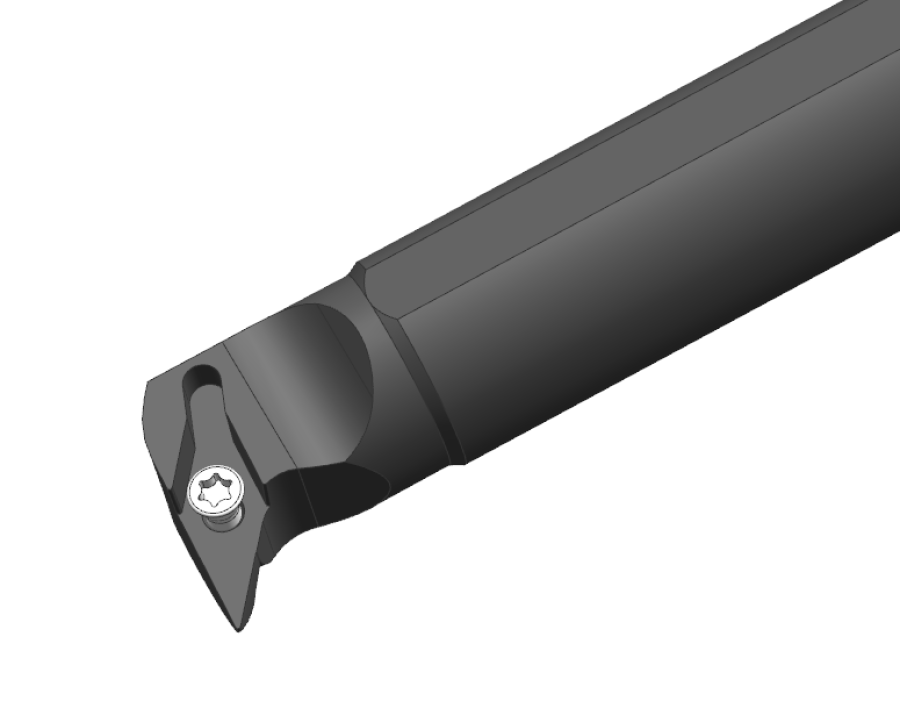

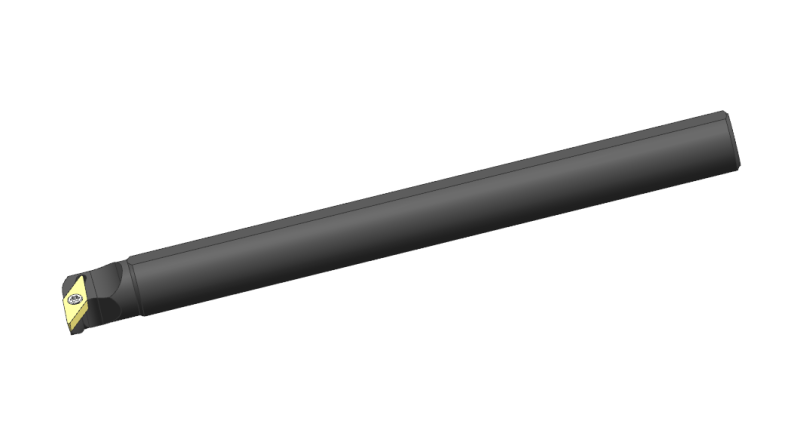

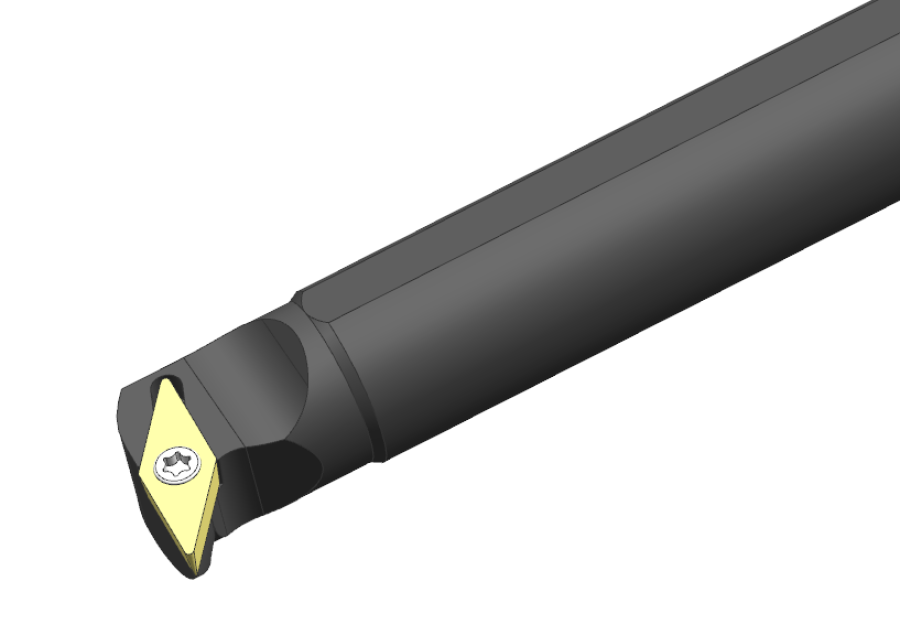

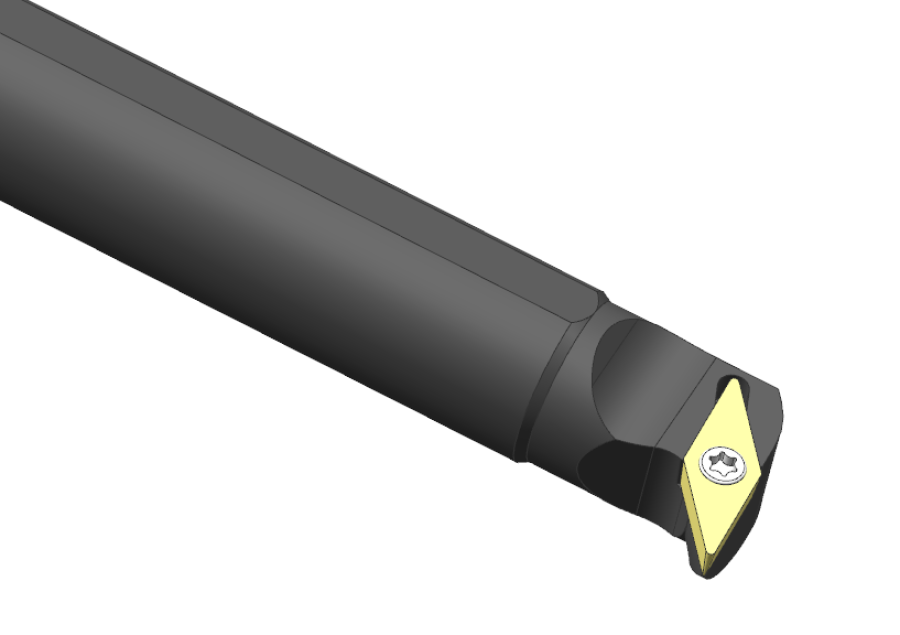

The Tool "S16Q-SVUBR/L-11-B22" refers to a type of internal turning boring bar used in CNC machining. This designation follows a standard identification system used by cutting tool manufacturers to specify the tool's properties and compatible inserts.

₹ 1,200 ^{₹ 2,000}

( No Reviews )

DIRECTION

RH

LH

Rajesh CN

vbmt svub boring tool

COD

Cancelable till received

No Returnable

Cash on Delivery is eligible for orders above ₹0 and below ₹0

DIRECTION :	RH, LH
Made In :	India
Brand :	FALCON

Tool Specifications

S: Indicates a boring bar with a steel shank.

16: Denotes the shank diameter is 16 mm.

Q: Specifies the overall length or a specific length code for the tool (e.g., 180mm as seen in a similar product's dimensions).

SVUBR/L:
- SVUB: This is the clamping and insert shape system. It uses positive V-type (35° rhombic) inserts.
- R/L: Indicates that the tool is available in both Right-hand (R) and Left-hand (L) cutting versions.

11: Specifies the compatible insert size. It is designed to be used with VBMT1103-- series inserts (e.g., VBMT 11 03 04).

B22: This is likely a manufacturer-specific code detailing other dimensions, such as minimum boring diameter (DMIN). 16mm shank boring bar with 'Q' length is often paired with a minimum boring diameter 22mm.
